Most BASE Modules are supplied with 1/4" nylon mounting standoffs. This hardware is economical, installs fast in the field, and allows a pc board to be easily removed with no messy residues.
Prison Inmate / Attorney Visitation Alert System Controller

• Interfaces to Visitation Room Door Switches, Guard Control Switch and Security System

• Opto-isolated Input Circuitry

• 2A Alarm and Alert Output Relays

Status LEDs

• Compact Size: 2.75 x 4.25

• Complete Manual and Wiring Dia.

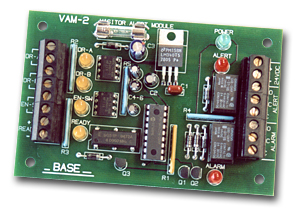

VAM-2 Visitor Alert Module
Operates from 24VDC @ 200mA max.
The VAM-2 Visitor Alert Module provides the control electronics for a guard alert system for prison inmate/attorney visitation rooms. An external Guard Control Switch, Door Position switches, Guard Alert Lamp, and optional remote Ready LED are installed near the visitation room and wired into the VAM-2. The VAM-2 will alert the guard and provide an alarm output when the attorney has completed a visitation session with an inmate.
