Most BASE Modules are supplied with 1/4" nylon mounting standoffs. This hardware is economical, installs fast in the field, and allows a pc board to be easily removed with no messy residues.

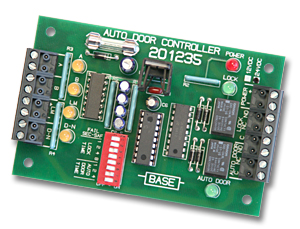

Sequence Controller for
Automatic Motorized Doors used with Electric Security Locks

• For use with Fail-Safe or Fail-Secure Locks

• Interfaces to Access Systems

• Unlock Timer 1-22 Sec

• Auto-Door Timer 1-7 Sec

• 2A Relay Output Contacts

Status LEDs

• Compact Size: 2.75 x 4.25

• Mounting Standoffs included

• Complete Manual with Wiring Diagram
Optoisolated Interface Circuitry...

Adjustable Cycle Timer to properely unlock door before issuing open command to door operator.

Helps prevent costly damage to Motorized Doors.
View the new 201839 Auto Door Controller with additional output relay options.
