Most BASE Modules are supplied with 1/4" nylon mounting standoffs. This hardware is economical, installs fast in the field, and allows a pc board to be easily removed with no messy residues.
Anti-Ambush Controller for High Security Entry Doors

• Interfaces to Hidden Anti-Ambush Pushbutton and Access Control Systems

• Fused 12VDC Outputs for Door lock and Aux 12VDC device

• Adjustable AA Timer 0.5 - 15.5 Min.

• 2A Alarm Relay Output

Status LEDs

• Compact Size: 3.0 x 4.5

• Complete Manual and Wiring

• Depluggable Terminals for prewiring convenience

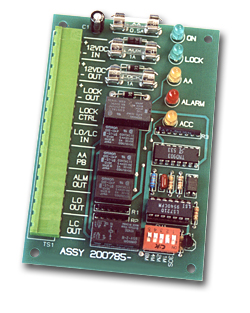

200785 Anti-Ambush Module
Operates from 12VDC @ 150mA max.
The 200785 Anti-Ambush Module interfaces to an entry door, access control system and an anti-ambush pushbutton and provides an alarm output when improper timed sequencing through the entry door occurs. The 3.0 x 4.5 inch module includes various dip switch settings, LED status indicators, 12vdc fused power input, mounting standoffs, and i/o manual. The module includes a 2A Alarm Relay, 8A Lock Control Relay, 2A Access Control Output Relay, and a 2A Late Open/Close Alarm Relay.
