Most BASE Modules are supplied with 1/4" nylon mounting standoffs. This hardware is economical, installs fast in the field, and allows a pc board to be easily removed with no messy residues. |
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
• For operation with 5, 12 or 24VDC
• + (source) or - (sink) relay control
• Red LEDs at all Relays

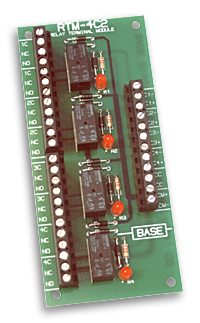

• 2.5" x 5.5" (RTM-4C2)

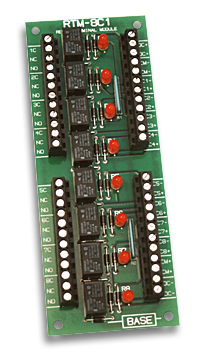

• 2.5" x 6.5" (RTM-8C1)
• Includes manual and standoffs
|
|
|
|
 |
|
|
| These light-duty Relay Terminal Modules provide multiple on-board relays together on one pc board. Choose from 4 DPDT relays (RTM-4C2) or 8 SPDT relays (RTM-8C1). Outputs are 2A Dry Form-C Contacts. Terminals are provided for controlling the positive (source) or negative (sink) side of the relay coils. All relays have Red LED status indicators. |
|
|
|
|
|
|
|
|
|
|
