Elevator Interface?
Do you need to interface your Access Control System to Elevators? We've combined these RTMs, a power supply and our LVPC enclosures to create several Elevator Interface Cabinets for 8 to 48 elevator floors.

• Dry 10A contact outputs
• Normal/Override keyswitch
• Fire Alarm override interface

...and all the great features of the individual components, like hinged liftoff vented door and selectable power supervision relay output. Some units include space, hardware and wiring for C-Cure R8 or I8 i/o modules.

The following is a partial list of Prewired Elevator Interface Cabinets from our Prewired Assembly database. Search our database of prewired assemblies for more variations.

LVPC-201139 (8 floors)
LVPC-201195 (16 floors)
LVPC-201248 (8 floors)
LVPC-201401 (8 floors)
LVPC-201402 (16 floors)
LVPC-201403 (24 floors)
LVPC-201404 (32 floors)
LVPC-201405 (40 floors)
Get maximum value.

Get it the way you want it.

Get it Prewired!

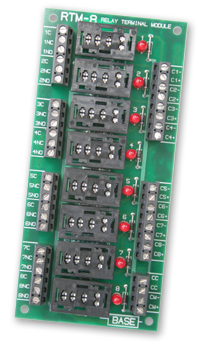

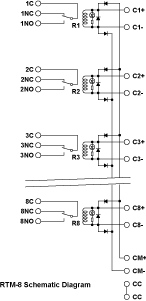

The RTM-8 Relay Terminal Modules provide 8 individual SPDT relay sockets together on one pc board. Outputs are 10A Dry Form C Contacts. Uses high current plug-in relays supplied separately depending on desired voltage. Relay control inputs are diode isolated.


• For 12 or 24VDC Relays

• + (source) or - (sink) relay control

• Red LEDs at all Relays

• 3.00" x 6.50" x 2.50"h

• Includes manual and standoffs

• Also mounts in 3" snap track


Stocked Accessories:

RH Series Relays - 12 and 24VDC in stock.

Order relays separately depending on desired voltage, 12 or 24VDC.
Supercedes the older BASE RTM-8P and RTM-8N Relay Terminal Modules
