	All BASE products that feature a Fire Interface Relay (2-pole) have terminals for the second set of contacts (Aux) that can be used for alarm monitoring of the Disconnect feature or for 'daisy-chaining' the fire interface to the next module. At the Aux terminals, a spare terminal is provided (ST) for terminating one side of an end-of-line resistor if needed.

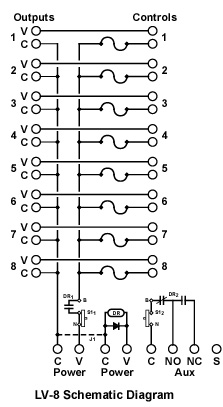

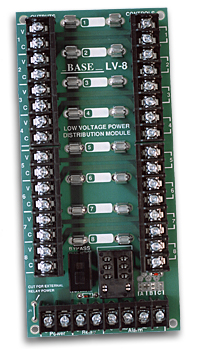

The LV-8 distributes power to 8 door locks directly controlled by an Access Control System (without isolation relays). A socket and terminals are provided for an optional Disconnect relay that can drop power to fail-safe locks when interfaced to a fire or life safety system.

• Distributes Power through 8 Fused Outputs

• 8 Inputs for Access Controller Interface

• Emergency Fail-Safe Power Disconnect

• Fire Interface Alarm Monitor Aux Contacts

• Uses Standard 3AG Fuses (1/4 x 1-1/4)

• 3.75" x 8.00" x 2.50" installed height

• Includes mounting standoffs and manual

Stocked Accessories:
3AG Fuses - various current ratings in stock.
RH Series Relays - 12/24 vdc in stock.

Note: The LV-8 is still available in limited production and has been superceded by the LV-8S. Click here for the LV-8S page. Although the newer LV-8S is the same size, same footprint, same price, can be wired the same, and uses the same Disconnect relay and fuses as the LV-8, it includes a new selectable-per-output feature.
