Most BASE Modules are supplied with 1/4" nylon mounting standoffs. This hardware is economical, installs fast in the field, and allows a pc board to be easily removed with no messy residues.

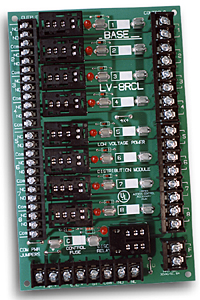

The LV-8RCL / LV-8RCL-N distributes power from a low voltage power source to 8 fused outputs through output isolation relays. The relays are controlled by an Access Control System. A fire interface relay (Disconnect Relay) is included that automatically drops output power in the event of a facility emergency.


• Distributes 8 Outputs through Isolation Relays

• 3 Operational Modes
• 8 Outputs with Disconnect
• 8 Outputs without Disconnect
• 4x4 Mode (4 with, 4 without)

Power Disconnect with Aux Contacts

• Red LED Indicators at all relay positions

• Complete Manual and Wiring Diagrams

• 5.00" x 8.00" x 2.50" installed height

• Includes mounting standoffs


Stocked Accessories:
3AG Fuses - various current ratings in stock.
RH Series Relays - 12 and 24VDC in stock.

The Product Manual explains all features simply and completely. Wiring and schematic diagrams are also included there. Download the PDFs. Its fast and easy!

NOTE: If you only need dry contact outputs and no fused power outputs, such as for elevator interface, then check out the RTM-8P or RTM-8N Relay Terminal Modules. Also search Tech Tips for more ideas and tricks for making installations easier, faster, and professional with BASE products.

FAQ: Which Model is right for my application?
How will you control the module relays? LV-8RCL LV-8RCL-N
Access Controller with Dry Contacts
X
X
Access Controller with + voltage output (source)
X
Access Controller with open collector output (sink)
X
Pushbuttons (switch with dry contacts)
X
X
Keypad (switch with dry contacts)
X
X
