The rugged steel mounting panels used in BASE Prewired LVPC Power Cabinet Assemblies contain prepunched holes for all components. No drilling or messy sticky tape required!
Basic Power Distribution for Low Voltage Systems.
The LV8A is one of our most popular models and is used in many of the Prewired Power Cabinets we produce. Simple, economical, and reliable. A basic building block for distributed power system success.


• Distributes Power through 8 Fused Outputs

• For Operation to 30 Volts AC/DC, 8 Amps

• Uses Standard 3AG Fuses (1/4 x 1-1/4)

• 2.75" x 7.00" x 1.00" installed height

• Includes mounting standoffs and manual


Stocked Accessories:
3AG Fuses - various current ratings in stock.

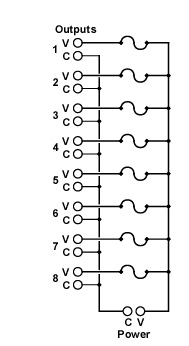

LV-8A Schematic Diagram

LV-8A
