The 201678 Terminal Module is intended to be mounted in a BASE LVPC-201677 Terminal Cabinet. Together the modules and terminal cabinet allow field wiring to be terminated away from crampt Security and Access Control DGP enclosures, while still permitting adequate room for test, service and expansion.
Board Footprint

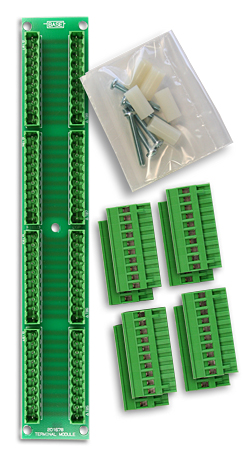

The 201678 Terminal Module includes;
(1) 201678 module printed circuit board
(5) 3/4" nylon mounting standoffs
(5) 8-32 x 1-1/4" PHMS Screws
(1) Terminal Label Sheet
(8) Terminal Plugs

Click here to download and print your own
additional Terminal Label Sheets.
Data Sheet
Product Manual
LVPC-201677 Cabinet includes;
(1) LVPC-16x20x06 Enclosure
(1) Removable Panel Assembly
(2) 8" Ground Bars - Isolated
Space for (6) 201678 Modules
6 Ground Bar mounting options
Click here to download
LVPC-201677 Terminal Cabinet
Installation Instructions
pdf.
LVPC-201677 Terminal Cabinet shown with
(2) 201678 Terminal Modules installed.
